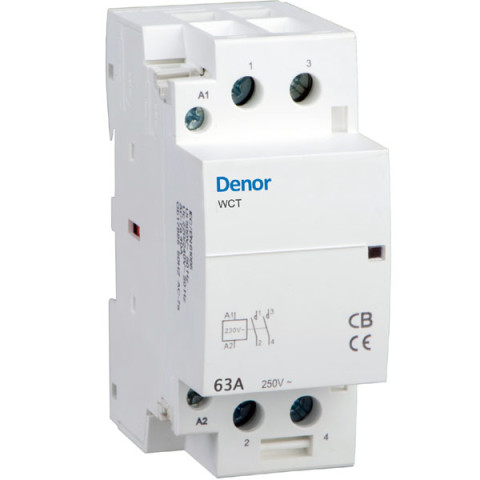

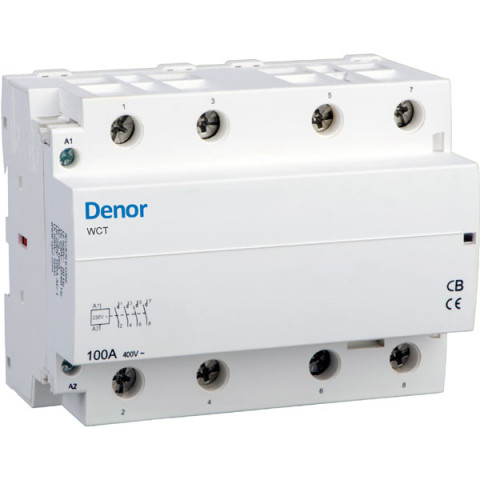

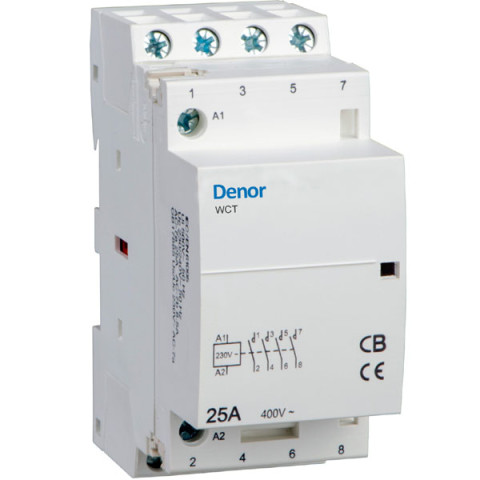

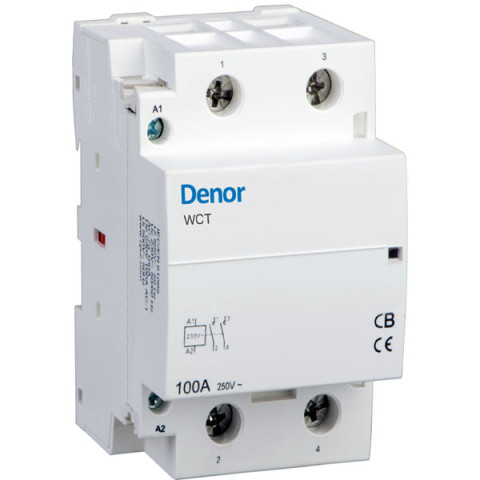

Modular Contactors WCT

WCT Modular Contactors can be used to remote control applications in alternative networks: Lighting,heating,ventilation,roller blinds,sanitary hot water; Mechanical ventilation systems,etc; Load-shedding of non-priority circuits

Presentation

With exclusive features, Denor WCT DIN rail contactor is definitely geared to absolute safety

  • Continuous safety for operators and unqualified personnel.
  • Compact design and modularization design
  • Rating :16, 20, 25, 40, 63 and 100 A
  • Number of poles: 1P, 2P, 3P, 4P
  • Coil Voltage: 24VAC, 110VAC, 220VAC, 380VAC,etc  50/60Hz
  • Compliance with standards: IEC/EN 61095 and CEI 1095
  • Electrical endurance (O-C): 100,000 cycles
  • Maximum number of switching operations a day: 100
  • Elegant appearance. Amounting instruction diagram is appended for convenient operation
  • No noise during operation
  • Utilization category: AC-1,AC-7a,AC-7b
  • 2 versions: Standard contactors / Manually operated contactors
  • Optional auxiliary: Open-Close indication, interference filtering, dual control, time delay

Benefits

  • Easy to select, with a 1 to 4 poles wide range compliant with DIN standard
  • Peace of mind with the complete modular system
  • Flexible auxiliaries combination  with a simple clip-on system

Applications

  • Control and monitoring of electrical circuits in all industrial, commercial and residential buildings.
  • Control and monitoring of single- or three-phase loads up to 100A.
  • interface between the control gear & power circuits for final circuits such as lighting, heating, roller blind, watering system, ovens, utility motors: ventilation, heat pump etc.

Specifications

Specifications for Modular Contactors 16A 25A 40A 63A Denor

Specifications for Modular Contactors 16A 25A 40A 63A 100A Denor

 Dimensions

Dimensions of Modular Contactors WCT
