Auxiliary Contacts WCTs for Modular Contactors WCT

This auxiliary WCTs allows to show "open"or"closed" postition of the Contactor; Mounted to the right of modular contactors; 9mm spacer

Presentation

Denor auxiliary allows indication or control of the ‘‘open’’ or ‘‘closed’’ position of the contactor power contacts.

  • Compact design and modularization design
  • Rating :10 A
  • Width: 9mm
  • Electrical endurance (O-C): 100,000 cycles
  • No noise during operation
  • Utilization category: AC-1,AC-7a,AC-7b
  • Optional Modular Contactors: Standard contactors / Manually operated contactors
  • Mounted to the right of modular contactors

Benefits

  • Easy to select, with a 9mm wide range compliant with DIN standard
  • Peace of mind with the complete modular system
  • Flexible auxiliaries combination  with a simple clip-on system

Applications

  • Monitoring of electrical circuits in all industrial, commercial and residential buildings for final circuits such as lighting, heating, roller blind, watering system, ovens, utility motors: ventilation, heat pump etc.

Specifications

Specifications for Auxiliary Contacts for Manual Control Modular Contactors Denor

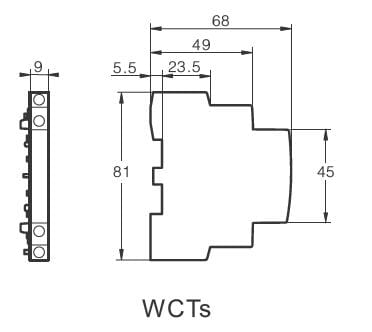

 Dimensions

Dimensions for Auxiliary WCTs
